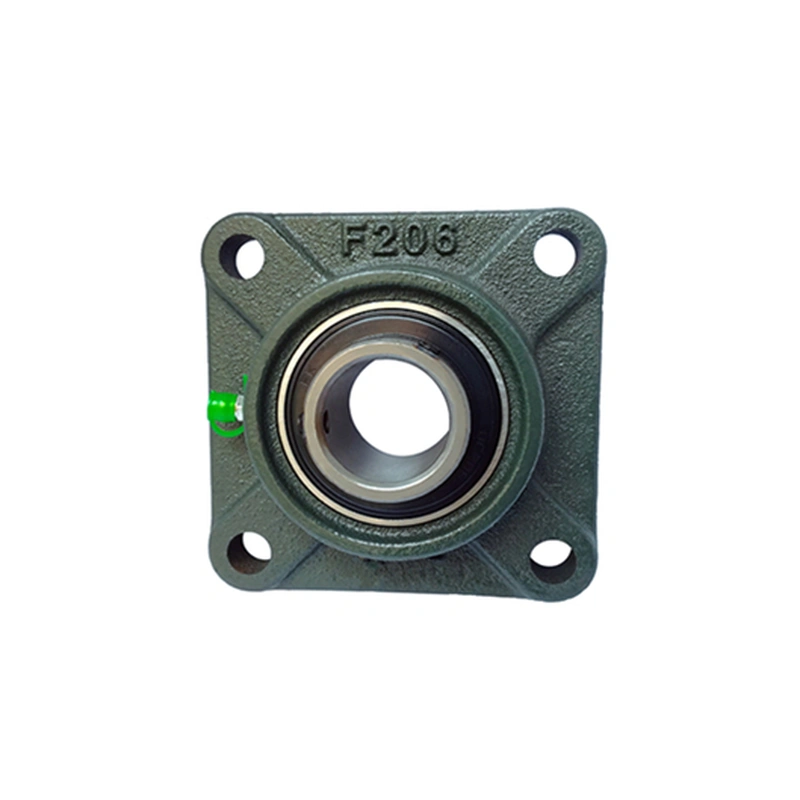

Bearing | Dimensions mm | Bolt Size | |||||||||
d | a | e | i | g | l | s | z | B | n | ||
UCF201 | 12 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 |
UCF201-8 | 1/2 | 3-3/8 | 2-33/64 | 19/32 | 15/32 | 1 | 15/32 | 1-5/16 | 1.2205 | 0.5 | 3/8 |
UCF202 | 15 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 |
UCF202-9 | 9/16 | 3-3/8 | 2-33/64 | 19/32 | 15/32 | 1 | 15/32 | 1-5/16 | 1.2205 | 0.5 | 3/8 |
UCF202-10 | 5/8 | ||||||||||
UCF203 | 17 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 |
UCF203-11 | 11/16 | 3-3/8 | 2-33/64 | 19/32 | 15/32 | 1 | 15/32 | 1-5/16 | 1.2205 | 0.5 | 3/8 |
UCF204 | 20 | 86 | 64 | 15 | 12 | 25.5 | 12 | 33.3 | 31 | 12.7 | M10 |
UCF204-12 | 3/4 | 3-3/8 | 2-33/64 | 19/32 | 15/32 | 1 | 15/32 | 1-5/16 | 1.2205 | 0.5 | 3/8 |
UCF205 | 25 | 95 | 70 | 16 | 14 | 27 | 12 | 35.8 | 34.1 | 14.3 | M10 |
UCF205-13 | 13/16 | 3-3/4 | 2-3/4 | 5/8 | 35/64 | 1-1/16 | 15/32 | 1-13/32 | 1.3425 | 0.563 | 3/8 |
UCF205-14 | 7/8 | ||||||||||
UCF205-15 | 15/16 | ||||||||||
UCF205-16 | 1 | ||||||||||
UCF206 | 30 | 108 | 83 | 18 | 14 | 31 | 12 | 40.2 | 38.1 | 15.9 | M14 |
UCF206-17 | 1-1/16 | 4-1/4 | 3-17/64 | 45/64 | 35/64 | 1-7/32 | 15/32 | 1-19/32 | 1.5 | 0.626 | 1/2 |
UCF206-18 | 1-1/8 | ||||||||||
UCF206-19 | 1-3/16 | ||||||||||
UCF206-20 | 1-1/4 | ||||||||||
UCF207 | 35 | 117 | 92 | 19 | 16 | 34 | 14 | 44.4 | 42.9 | 17.5 | M14 |
UCF207-20 | 1-1/4 | 4-39/64 | 3-5/8 | 3/4 | 5/8 | 1-11/32 | 35/64 | 1-3/4 | 1.689 | 0.689 | 1/2 |
UCF207-21 | 1-5/16 | ||||||||||
UCF207-22 | 1-3/8 | ||||||||||
UCF207-23 | 1-7/16 | ||||||||||
UCF208 | 40 | 130 | 102 | 21 | 16 | 36 | 16 | 51.2 | 49.2 | 19 | M14 |
UCF208-24 | 1-1/2 | 5-1/8 | 4-1/64 | 53/64 | 5/8 | 1-27/64 | 5/8 | 2-1/64 | 1.937 | 0.748 | 1/2 |
UCF208-25 | 1-9/6 | ||||||||||
UCF209 | 45 | 137 | 105 | 22 | 18 | 38 | 16 | 52.2 | 49.2 | 19 | M14 |
UCF209-26 | 1-5/8 | 5-13/32 | 4-9/64 | 55/64 | 23/32 | 1-1/2 | 5/8 | 2-1/64 | 1.937 | 0.748 | 1/2 |
UCF209-27 | 1-11/16 | ||||||||||
UCF209-28 | 1-3/4 | ||||||||||
UCF210 | 50 | 143 | 111 | 22 | 18 | 40 | 16 | 54.6 | 51.6 | 19 | M16 |
UCF210-29 | 1-13/16 | 5-5/8 | 4-3/8 | 55/64 | 23/32 | 1-9/16 | 5/8 | 2-5/32 | 2.0315 | 0.748 | 5/8 |
UCF210-30 | 1-7/8 | ||||||||||
UCF210-31 | 1-15/16 | ||||||||||
UCF210-32 | 2 | ||||||||||
UCF211 | 55 | 162 | 130 | 25 | 20 | 43 | 19 | 58.4 | 55.6 | 22.2 | M16 |
UCF211-32 | 2 | 6-3/8 | 5-1/8 | 63/64 | 25/32 | 1-11/16 | 3/4 | 1-5/16 | 2.189 | 0.874 | 5/8 |
UCF211-33 | 2-1/16 | ||||||||||
UCF211-34 | 2-1/8 | ||||||||||
UCF211-35 | 2-3/16 | ||||||||||
UCF212 | 60 | 175 | 143 | 29 | 20 | 48 | 19 | 68.7 | 65.1 | 25.4 | M16 |
UCF212-36 | 2-1/4 | 6-57/64 | 5-5/8 | 1-3/16 | 25/32 | 1-57/64 | 3/4 | 2-45/64 | 2.563 | 1 | 5/8 |
UCF212-37 | 2-5/16 | ||||||||||
UCF212-38 | 2-3/8 | ||||||||||
UCF212-39 | 2-7/16 | ||||||||||
UCF213 | 65 | 187 | 149 | 30 | 22 | 50 | 19 | 69.7 | 65.1 | 25.4 | M20 |
UCF213-40 | 2-1/2 | 7-23/64 | 5-55/64 | 36966 | 55/64 | 1-31/32 | 3/4 | 2.563 | 1 | ||
UCF213-41 | 2-9/16 | ||||||||||
UCF214 | 70 | 193 | 152 | 31 | 22 | 54 | 19 | 75.4 | 74.6 | 30.2 | M20 |
UCF214-42 | 2-5/8 | 7-19/32 | 5-63/64 | 1-7/32 | 55/64 | 2-1/8 | 3/4 | 2-31/32 | 2.937 | 1.189 | 3/4 |
UCF214-43 | 2-11/16 | ||||||||||
UCF214-44 | 2-3/4 | ||||||||||
UCF215 | 75 | 200 | 159 | 34 | 22 | 56 | 19 | 78.5 | 77.8 | 33.3 | M20 |
UCF215-45 | 2-13/16 | 7-7/8 | 6-17/64 | 1-11/32 | 55/64 | 2-7/32 | 3/4 | 3-3/32 | 3.063 | 1.311 | 3/4 |
UCF215-46 | 2-7/8 | ||||||||||
UCF215-47 | 2-15/16 | ||||||||||
UCF215-48 | 3 | ||||||||||
UCF216 | 80 | 208 | 165 | 34 | 22 | 58 | 23 | 83.3 | 82.6 | 65.1 | M20 |
UCF216-49 | 3-1/16 | 8-3/16 | 6-1/2 | 1-11/32 | 55/64 | 2-9/32 | 29/32 | 3-9/323 | 3.252 | 2.563 | 3/4 |
UCF216-50 | 3-1/8 | ||||||||||
UCF216-51 | 3-3/16 | ||||||||||
UCF217 | 85 | 220 | 175 | 36 | 24 | 63 | 23 | 87.6 | 85.7 | 34.1 | M20 |
UCF217-52 | 3-1/14 | 8-21/23 | 6-57/64 | 1-27/64 | 15/16 | 2-15/32 | 29/32 | 3-71/16 | 3.374 | 1.343 | 3/4 |
UCF217-53 | 3-5/16 | ||||||||||
UCF217-55 | 3-7/16 | ||||||||||
UCF218 | 90 | 235 | 187 | 40 | 24 | 68 | 23 | 96.3 | 96 | 39.7 | M20 |
UCF218-56 | 3-1/2 | 9-1/4 | 7-23/64 | 1-37/64 | 15/16 | 2-11/16 | 29/32 | 3-25/32 | 3.7795 | 1.563 | 3/4 |
UCF305 | 25 | 110 | 80 | 16 | 13 | 29 | 16 | 39 | 38 | 15 | M14 |
UCF305-13 | 13/16 | 4-11/32 | 3-5/32 | 5/8 | 1/ 2 | 1-5/32 | 5/8 | 1-17/32 | 1.4961 | 0.591 | 1/ 2 |
UCF305-14 | 7/8 | ||||||||||
UCF305-15 | 15/16 | ||||||||||
UCF305-16 | 1 | ||||||||||
UCF306 | 30 | 125 | 95 | 18 | 15 | 32 | 16 | 44 | 43 | 17 | M14 |
UCF306-17 | 1-1/16 | 4-29/32 | 3-37/64 | 45/64 | 19/32 | 1-1/4 | 5/8 | 1-47/64 | 1.6929 | 0.669 | 1/ 2 |
UCF306-18 | 1-1/8 | ||||||||||
UCF306-19 | 1-3/16 | ||||||||||
UCF307 | 35 | 135 | 100 | 20 | 16 | 36 | 19 | 49 | 48 | 19 | M16 |
UCF307-20 | 1-1/4 | 5-5/16 | 3-15/16 | 25/32 | 5/8 | 1-13/32 | 3/ 4 | 1-59/64 | 1.8898 | 0.748 | 5/8 |
UCF307-21 | 1-5/16 | ||||||||||
UCF307-22 | 1-3/8 | ||||||||||
UCF307-23 | 1-7/16 | ||||||||||
UCF308 | 40 | 150 | 112 | 23 | 17 | 40 | 19 | 56 | 52 | 19 | M16 |
UCF308-24 | 1-1/2 | 5-29/32 | 4-13/32 | 29/32 | 21/32 | 1-9/16 | 3/ 4 | 2-13/64 | 2.0472 | 0.748 | 5/8 |
UCF308-25 | 1-9/16 | ||||||||||
UCF309 | 45 | 160 | 125 | 25 | 18 | 44 | 19 | 60 | 57 | 22 | M16 |
UCF309-26 | 1-5/8 | 6-5/16 | 4-59/64 | 63/64 | 23/32 | 1-23/32 | 3/ 4 | 2-23/64 | 2.2441 | 0.866 | 5/8 |
UCF309-27 | 1-11/16 | ||||||||||
UCF309-28 | 1-3/4 | ||||||||||
UCF310 | 50 | 175 | 132 | 28 | 19 | 48 | 23 | 67 | 61 | 22 | M20 |
UCF310-29 | 1-13/16 | 6-7/8 | 5-13/64 | 1-7/64 | 3/ 4 | 1-7/8 | 29/32 | 2-41/64 | 2.4016 | 0.866 | 3/ 4 |
UCF310-30 | 1-7/8 | ||||||||||
UCF310-31 | 1-15/16 | ||||||||||
UCF311 | 55 | 185 | 140 | 30 | 20 | 52 | 23 | 71 | 66 | 25 | M20 |
UCF311-32 | 2 | 7-9/32 | 5-33/64 | 1-3/16 | 25/32 | 2-1/16 | 29/32 | 2-51/64 | 2.5984 | 0.948 | 3/ 4 |
UCF311-33 | 2-1/16 | ||||||||||
UCF311-34 | 2-1/8 | ||||||||||
UCF311-35 | 2-3/16 | ||||||||||
UCF312 | 60 | 195 | 150 | 33 | 22 | 56 | 23 | 78 | 71 | 26 | M20 |
UCF312-36 | 2-1/4 | 7-11/16 | 5-29/32 | 1-19/64 | 7/8 | 2-7/32 | 29/32 | 3-5/64 | 2.7953 | 1.024 | 3/ 4 |
UCF312-37 | 2-5/16 | ||||||||||
UCF312-38 | 2-3/8 | ||||||||||
UCF312-39 | 2-7/16 | ||||||||||
UCF313 | 65 | 208 | 166 | 33 | 22 | 58 | 23 | 78 | 75 | 30 | M20 |
UCF313-40 | 2-1/2 | 8-3/16 | 6-17/32 | 1-19/64 | 55/64 | 2-9/32 | 29/32 | 3-5/64 | 2.9528 | 1.818 | 3/ 4 |
UCF313-41 | 2-9/16 | ||||||||||
UCF314 | 70 | 226 | 178 | 36 | 25 | 61 | 25 | 81 | 78 | 33 | M22 |
UCF314-42 | 2-5/8 | 8-29/32 | 6-1/64 | 1-27/64 | 31/32 | 2-13/32 | 63/64 | 3-3/16 | 3.0708 | 1.299 | 7/8 |
UCF314-43 | 2-11/16 | ||||||||||
UCF314-44 | 2-3/4 | ||||||||||
UCF315 | 75 | 236 | 184 | 39 | 25 | 66 | 25 | 89 | 82 | 32 | M22 |
UCF315-45 | 2-13/16 | 9-19/32 | 7-1/4 | 1-17/32 | 31/32 | 2-19/32 | 63/64 | 3-1/2 | 3.2283 | 1.26 | 7/8 |
UCF315-46 | 2-7/8 | ||||||||||
UCF315-47 | 2-15/16 | ||||||||||
UCF315-48 | 3 | ||||||||||
UCF316 | 80 | 250 | 196 | 38 | 27 | 68 | 31 | 90 | 86 | 34 | M27 |
UCF316-49 | 3-1/16 | 9-27/32 | 7-23/32 | 1-1/2 | 1-1/16 | 2-11/16 | 1-7/32 | 3-35/64 | 3.3858 | 1.339 | 1 |
UCF316-50 | 3-1/8 | ||||||||||
UCF316-51 | 3-3/16 | ||||||||||
UCF317 | 85 | 260 | 204 | 44 | 27 | 74 | 31 | 100 | 96 | 40 | M27 |
UCF317-52 | 3-1/4 | 10-1/4 | 8-1/32 | 1-47/64 | 1-1/16 | 2-29/32 | 1-7/32 | 3-15/16 | 3.7795 | 1.575 | 1 |
UCF317-53 | 3-5/16 | ||||||||||
UCF317-55 | 3-7/16 | ||||||||||
UCF318 | 90 | 280 | 216 | 44 | 30 | 76 | 35 | 100 | 96 | 40 | M27 |
UCF318-55 | 3-7/16 | 11-1/32 | 8-1/2 | 1-47/64 | 1-3/16 | 3 | 1-3/8 | 3-15/16 | 3.7795 | 1.575 | 1 |
UCF318-56 | 3-1/2 | ||||||||||
UCF319 | 95 | 290 | 228 | 59 | 30 | 94 | 35 | 121 | 103 | 41 | M30 |
UCF319-58 | 3-5/8 | 11-13/32 | 8-31/32 | 2-21/64 | 1-3/16 | 3-11/16 | 1-3/8 | 4-49/64 | 4.0551 | 1.614 | 1-1/8 |
UCF319-59 | 3-11/16 | ||||||||||
UCF319-60 | 3-3/4 | ||||||||||
UCF320 | 100 | 310 | 242 | 59 | 32 | 94 | 38 | 125 | 108 | 42 | M33 |
UCF320-64 | 4 | 12-7/32 | 9-17/32 | 2-21/64 | 1-1/4 | 3-11/16 | 1-1/2 | 3-11/16 | 1-1/2 | 4-29/32 | 1-1/4 |
