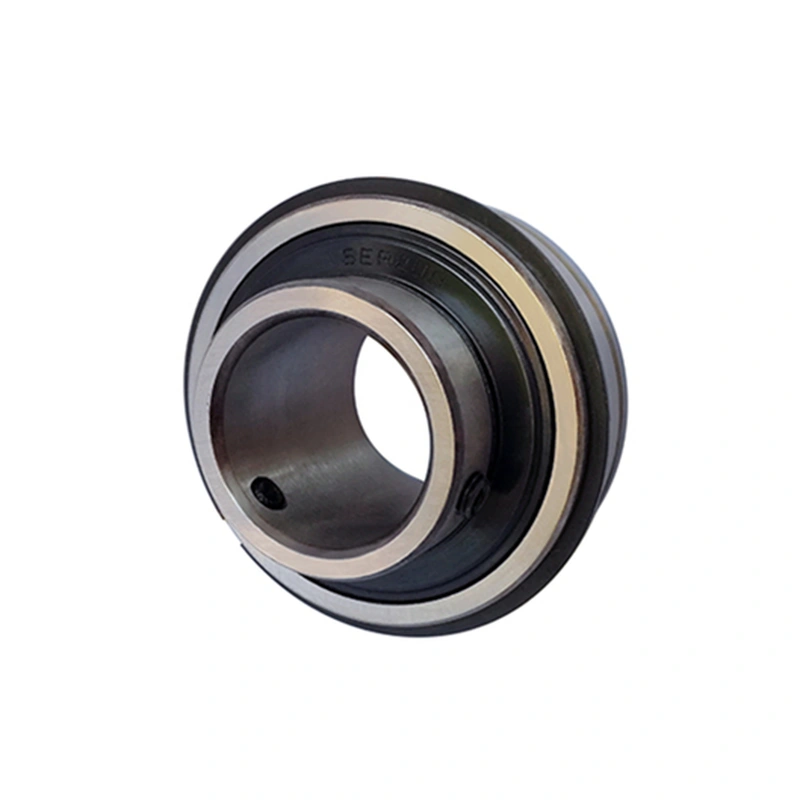

Insert Bearing SER 1680 NC

Description

Bearing NO.	Dimensions(mm/in.)									Weight(kg)
Bearing NO.	d1	d	D	B	C	B1	B2	d2	F	Weight(kg)
1680204;H305	20	25	52	18	16	29	8	38	3.7	0.2
1680204;HE305	3/4	0.9843	2.0472	0.7087	0.6299	1.1417	0.315	1.496	0.146	0.2
1680204;HA305	11/16	0.9843	2.0472	0.7087	0.6299	1.1417	0.315	1.496	0.146	0.2
1680205;H306	25	30	62	20	18	31	8	45	5	0.315
1680205;HE306	1	1.1811	2.4409	0.7874	0.7087	1.2205	0.315	1.772	0.197	0.315
1680205;HA306	15/16	1.1811	2.4409	0.7874	0.7087	1.2205	0.315	1.772	0.197	0.315
1680205;HS306	7/8	1.1811	2.4409	0.7874	0.7087	1.2205	0.315	1.772	0.197	0.315
1680206;H307	30	35	72	22	20	35	9	52	5.7	0.47
1680206;HA307	3/16	1.378	2.8346	0.8661	0.7874	1.3779	0.354	2.047	0.224	0.47
1680206;HS307	1/8	1.378	2.8346	0.8661	0.7874	1.3779	0.354	2.047	0.224	0.47
1680207;H308	35	40	80	23	21	36	10	58	5.9	0.59
1680207;HE308	1/4	1.5748	3.1496	0.9055	0.8268	1.417	0.394	2.283	0.2323	0.59
1680207;HA308	5/16	1.5748	3.1496	0.9055	0.8268	1.417	0.394	2.283	0.2323	0.59
1680207;HS308	3/8	1.5748	3.1496	0.9055	0.8268	1.417	0.394	2.283	0.2323	0.59
1680208;H309	40	45	85	23	21	39	11	65	6.4	0.66
1680208;HE309	1/2	1.7717	3.3465	0.9055	0.8268	1.5354	0.433	2.559	0.252	0.66
1680208;HA309	7/16	1.7717	3.3465	0.9055	0.8268	1.5354	0.433	2.559	0.252	0.66

Bearing NO.	Dimensions(mm/in.)									Weight(kg)
Bearing NO.	d	d1	D	B	B1	C	S	ds	F	Weight(kg)
ERC204	20	44.5	47	31	32.5	17	12.7	M4X0.7	3.8	0.3
ERC 204-12	3/4	1.752	1.85	1.221	1.28	0.669	0.5	8-32UNC	0.15	0.3
ERC205	25	49.2	52	34.9	37.3	17	14.3	M4X0.7	5.2	0.42
ERC 205-13	13/16	1.937	2.047	1.374	1.469	0.669	0.563	8-32UNC	0.205	0.42
ERC 205-14	7/8	1.937	2.0472	1.374	1.4685	0.6693	0.563	8-32UNC	0.205	0.42
ERC 205-15	15/16	1.937	2.043	1.374	1.469	0.669	0.563	8-32UNC	0.205	0.42
ERC 205-16	1	1.937	2.047	1.374	1.469	0.669	0.563	8-32UNC	0.205	0.42
ERC206	30	55.6	62	38.1	39.7	19	15.9	M4X0.7	5.6	0.53
ERC 206-17	1/16	2.189	2.441	1.5	1.563	0.748	0.626	8-32UNC	0.22	0.53
ERC 206-18	1/8	2.189	2.441	1.5	1.563	0.748	0.626	8-32UNC	0.22	0.53
ERC 206-19	3/16	2.189	2.441	1.5	1.563	0.748	0.626	8-32UNC	0.22	0.53
ERC 206-20	1/4	2.189	2.441	1.5	1.563	0.748	0.626	8-32UNC	0.22	0.53
ERC207	35	65.1	72	42.9	44.5	20	17.5	M5X0.8	5.6	0.85
ERC 207-20	1/4	2.437	2.835	1.689	1.752	0.787	0.689	10-24UNC	0.22	0.85
ERC 207-22	3/8	2.563	2.835	1.689	1.752	0.787	0.689	10-24UNC	0.22	0.85
ERC 207-23	7/16	2.563	2.835	1.689	1.752	0.787	0.689	10-24UNC	0.22	0.85
ERC208	40	68.3	80	49.2	50.8	21	19	M5X0.8	6.4	1.1
ERC 208-24	1/2	2.689	3.15	1.937	1.976	0.827	0.748	10-24UNC	0.252	1.1
ERC209	45	74.6	85	49.2	50.2	22	19	M5X0.8	6.4	1.11
ERC 209-26	5/8	2.811	3.345	1.937	1.976	0.866	0.748	10-24UNC	0.252	1.11
ERC 209-27	11/16	2.937	3.347	1.937	1.976	0.866	0.748	10-24UNC	0.252	1.11
ERC 209-28	3/4	2.937	3.347	1.937	1.976	0.866	0.748	10-24UNC	0.252	1.11
ERC210	50	85.7	90	51.6	53.1	24	19	M6X1	7.5	1.48
ERC 210-31	1-15/16	3.374	3.543	2.031	2.091	0.945	0.748	1/4-20UNC	0.295	1.48
ERC 210-32	2	3.374	3.543	2.031	2.091	0.945	0.748	1/4-20UNC	0.295	1.48
ERC211	55	92.1	100	55.6	57.1	25	22.2	M6X1	7.5	1.61
ERC 211-32	2	3.5	3.937	2.189	2.248	0.984	0.874	1/4-20UNC	0.295	1.61
ERC 211-35	3/16	3.626	3.937	2.189	2.248	0.984	0.874		0.295	1.61
ERC212	55	104.8	110	65.1	66.7	27	25.4	M8X1.25	7.5	2.34
ERC 212-36	1/4	4.063	4.331	2.563	2.626	1.063	1	5/16-18UNC	0.295	2.34
ERC 212-39	7/16	4.126	4.331	2.563	2.626	1.063	1	5/16-18UNC	0.295	2.34

Bearing NO.	Dimensions(mm/in.)								Weight(kg)
Bearing NO.	d	D	B	C	r	S	G	ds	Weight(kg)
K000	10	26	14	8	0.5	4	3	M3X0.35	0.02
SS-K000	10	1.0236	0.551	0.315	0.5	0.157	0.118	M3X0.35	0.02
K001	12	28	14.5	8	0.5	4	3	M3X0.35	0.03
SS-K001	12	1.1024	0.571	0.315	0.5	0.157	0.118	M3X0.35	0.03
K002	15	32	16.5	9	0.5	4.5	3.5	M4X0.5	0.05
SS-K002	15	1.2598	0.65	0.354	0.5	0.177	0.138	M4X0.5	0.05
K003	17	35	17.5	10	0.5	5	3.5	M4X0.5	0.05
SS-K003	17	1.3779	0.689	0.394	0.5	0.197	0.138	M4X0.5	0.05
K004	20	42	21	12	1	6	4	M5X0.5	0.09
SS-K004	20	1.6535	0.827	0.472	1	0.236	0.157	M5X0.5	0.09
K005	25	47	22.5	12	1	6	4.5	M5X0.5	0.1
SS-K005	25	1.8504	0.886	0.472	1	0.236	0.177	M5X0.5	0.1
K006	30	55	24.5	13	1.5	6.5	5	M5X0.5	0.15
SS-K006	30	2.1653	0.965	0.512	1.5	0.256	0.197	M5X0.5	0.15

Bearing NO.	Dimensions(mm/in.)									Weight(kg)
Bearing NO.	d	d1	D	B	B1	C	S	ds	F	Weight(kg)
NC204	20	44.5	47	31	33.4	17	12.7	M4X0.7	3.7	0.3
NC 204-12	3/4	1.752	1.85	1.221	1.315	0.669	0.5	8-32UNC	0.146	0.3
NC205	25	49.2	52	34.1	36.5	17	14.3	M4X0.7	3.9	0.4
NC 205-13	13/16	1.937	2.047	1.343	1.437	0.669	0.563	8-32UNC	0.154	0.4
NC 205-14	7/8	1.937	2.047	1.343	1.437	0.669	0.563	8-32UNC	0.154	0.4
NC 205-15	15/16	1.937	2.047	1.343	1.437	0.669	0.563	8-32UNC	0.154	0.4
NC 205-16	1	1.937	2.047	1.343	1.437	0.669	0.563	8-32UNC	0.154	0.4
NC206	30	55.6	62	38.1	39.7	19	15.9	M4X0.7	5	0.5
NC 206-17	1/16	2.189	2.4409	1.5	1.563	0.748	0.626	8-32UNC	0.197	0.5
NC 206-18	1/8	2.189	2.4409	1.5	1.563	0.748	0.626	8-32UNC	0.197	0.5
NC 206-19	3/16	2.189	2.4409	1.5	1.563	0.748	0.626	8-32UNC	0.197	0.5
NC 206-20	1/4	2.189	2.4409	1.5	1.563	0.748	0.626	8-32UNC	0.197	0.5
NC207	35	65.1	72	42.9	44.5	20	17.5	M5X0.8	5.7	0.8
NC 207-20	1/4	2.437	2.835	1.689	1.752	0.787	0.689	10-24UNC	0.224	0.8
NC 207-22	3/8	2.563	2.8346	1.689	1.752	0.7874	0.689	10-24UNC	0.224	0.8
NC 207-23	7/16	2.563	2.8346	1.689	1.752	0.787	0.689	10-24UNC	0.224	0.8
NC208	40	68.3	80	49.2	50.8	21	19	M5X0.8	6.2	1
NC 208-24	1/2	2.689	3.1496	1.937	1.976	0.827	0.748	10-24UNC	0.244	1
NC209	45	74.6	85	49.2	50.8	22	19	M5X0.8	6.4	1.1
NC 209-26	5/8	2.811	3.344	1.937	1.976	0.866	0.748	10-24UNC	0.252	1.1
NC 209-27	11/16	2.937	3.347	1.937	1.976	0.866	0.748	10-24UNC	0.252	1.1
NC 209-28	3/4	2.937	3.347	1.937	1.976	0.866	0.748	10-24UNC	0.252	1.1
NC210	50	85.7	90	51.6	53.1	24	19	M6X1	6.5	1.4
NC 210-31	1-15/16	3.374	3.543	2.031	2.091	0.945	0.748	1/4-20UNC	0.2559	1.4
NC 210-32	2	3.374	3.543	2.031	2.091	0.945	0.748	1/4-20UNC	0.2559	1.4
NC211	55	92.1	100	55.6	57.1	25	22.2	M6X1	7	1.5
NC 211-32	2	3.5	3.937	2.189	2.248	0.984	0.874	1/4-20UNC	0.276	1.5
NC 211-35	3/16	3.626	3.937	2.189	2.248	0.984	0.874	1/4-20UNC	0.276	1.5
NC212	55	104.8	110	65.1	66.7	27	25.4	M8X1.25	7.6	2.2
NC 212-36	1/4	4.063	4.331	2.563	2.626	1.063	1	5/16-18UNC	0.299	2.2
NC 212-39	7/16	4.126	4.331	2.563	2.626	1.063	1	5/16-18UNC	0.299	2.2

Bearing NO.	Dimensions(mm/in.)				Weight(kg)
Bearing NO.	d	D	B	F	Weight(kg)
ORAE40NPPB	1.574	3.149	0.866	0.244	0.37
ORAE40NPPB	40	80	22	6.2	0.37
ORAE30NPPB	1.1811	2.4409	0.7087	0.197	0.2
ORAE30NPPB	30	62	18	5	0.2

Bearing NO.	Dimensions(mm/in.)												Weight(kg)
Bearing NO.	d	D	B	C	S	S1	T	F	J	P	G	ds	Weight(kg)
SER201	12	47	31	15.9	10.3	20.7	1.12	3.8	2.46	52.7	4.8	M6x1	0.22
SER 201-8	1/2	1.8504	1.2205	0.626	0.406	0.815	0.044	0.15	0.097	2.075	0.189	1/4-28UNF	0.22
SER202	15	1.8504	1.2205	0.626	0.406	0.815	0.044	0.15	0.097	2.075	0.189	1/4-28UNF	0.22
SER 202-10	5/8	1.8504	1.2205	0.626	0.406	0.815	0.044	0.15	0.097	2.075	0.189	1/4-28UNF	0.22
SER203	17	1.8504	1.2205	0.626	0.406	0.815	0.044	0.15	0.097	2.075	0.189	1/4-28UNF	0.22
SER204	20	47	31	15.9	10.3	20.7	1.12	3.8	2.46	52.7	4.8	M6x1	0.17
SER 204-12	3/4	1.8504	1.2205	0.626	0.406	0.815	0.044	0.15	0.097	2.075	0.189	1/4-28UNF	0.17
SER205	25	52	34.9	19	13.1	21.8	1.12	5.2	2.46	57.9	4.8	M6x1	0.21
SER 205-13	13/16	2.0472	1.374	0.748	0.516	0.858	0.044	0.205	0.097	2.28	0.197	1/4-28UNF	0.21
SER 205-14	7/8	2.0472	1.374	0.748	0.516	0.858	0.044	0.205	0.097	2.28	0.197	1/4-28UNF	0.21
SER 205-15	15/16	2.0472	1.374	0.748	0.516	0.858	0.044	0.205	0.097	2.28	0.197	1/4-28UNF	0.21
SER 205-16	1	2.0472	1.374	0.748	0.516	0.858	0.044	0.205	0.097	2.28	0.197	1/4-28UNF	0.21
SER206	30	62	38.1	22.2	15.9	22.2	1.7	5.6	3.28	67.7	5	M6x1	0.33
SER 206-17	1/16	2.4409	1.5	0.874	0.626	0.874	0.067	0.22	0.129	2.665	0.197	1/4-28UNF	0.33
SER 206-18	1/8	2.4409	1.5	0.874	0.626	0.874	0.067	0.22	0.129	2.665	0.197	1/4-28UNF	0.33
SER 206-19	3/16	2.4409	1.5	0.874	0.626	0.874	0.067	0.22	0.129	2.665	0.197	1/4-28UNF	0.33
SER 206-20	1/4	2.4409	1.5	0.874	0.626	0.874	0.067	0.22	0.129	2.665	0.197	1/4-28UNF	0.33
SER207	35	72	42.9	23.8	17.5	25.4	1.7	5.6	3.28	78.6	6.7	M8x1	0.5
SER 207-20	1/4	2.8346	1.689	0.937	0.689	1	0.067	0.22	0.129	3.094	0.264	5/16-24UNF	0.5
SER 207-21	5/16	2.8346	1.689	0.937	0.689	1	0.067	0.22	0.129	3.094	0.264	5/16-24UNF	0.5
SER 207-22	3/8	2.8346	1.689	0.937	0.689	1	0.067	0.22	0.129	3.094	0.264	5/16-24UNF	0.5
SER 207-23	7/16	2.8346	1.689	0.937	0.689	1	0.067	0.22	0.129	3.094	0.264	5/16-24UNF	0.5
SER208	40	80	49.2	27.8	19	30.2	1.7	6.4	3.28	86.6	8	M8x1	0.7
SER 208-24	1/2	3.1496	1.937	1.0945	0.748	1.189	0.067	0.252	0.129	3.409	0.315	5/16-24UNF	0.7
SER 208-25	9/16	3.1496	1.937	1.0945	0.748	1.189	0.067	0.252	0.129	3.409	0.315	5/16-24UNF	0.7
SER209	45	85	49.2	27.8	19	30.2	1.7	6.4	3.28	91.6	8	M8x1	0.72
SER 209-26	5/8	3.3465	1.937	1.0945	0.748	1.189	0.067	0.252	0.129	3.606	0.315	5/16-24UNF	0.72
SER 209-27	11/16	3.3465	1.937	1.0945	0.748	1.189	0.067	0.252	0.129	3.606	0.315	5/16-24UNF	0.72
SER 209-28	3/4	3.3465	1.937	1.0945	0.748	1.189	0.067	0.252	0.129	3.606	0.315	5/16-24UNF	0.72
SER210	50	90	51.6	28.6	19	32.6	2.46	7.5	3.28	96.5	10	M10x1	0.83
SER 210-29	1-13/16	3.5433	2.0315	1.126	0.748	1.283	0.097	0.295	0.129	3.799	0.394	3/8-24UNF	0.83
SER 210-30	7/8	3.5433	2.0315	1.126	0.748	1.283	0.097	0.295	0.129	3.799	0.394	3/8-24UNF	0.83
SER 210-31	1-15/16	3.5433	2.0315	1.126	0.748	1.283	0.097	0.295	0.129	3.799	0.394	3/8-24UNF	0.83
SER 210-32	2	3.5433	2.0315	1.126	0.748	1.283	0.097	0.295	0.129	3.799	0.394	3/8-24UNF	0.83
SER211	55	100	55.6	30.2	22.2	33.4	2.46	7.5	3.28	106.5	10	M10x1	1.1
SER 211-32	2	3.937	2.189	1.189	0.874	1.315	0.097	0.295	0.129	4.193	0.394	3/8-24UNF	1.1
SER 211-33	1/16	3.937	2.189	1.189	0.874	1.315	0.097	0.295	0.129	4.193	0.394	3/8-24UNF	1.1
SER 211-34	1/8	3.937	2.189	1.189	0.874	1.315	0.097	0.295	0.129	4.193	0.394	3/8-24UNF	1.1
SER 211-35	3/16	3.937	2.189	1.189	0.874	1.315	0.097	0.295	0.129	4.193	0.394	3/8-24UNF	1.1
SER212	60	110	65.1	31.8	25.4	39.7	2.46	7.5	3.28	116.6	10	M10x1	1.53
SER 212-36	1/4	4.3307	2.563	1.252	1	1.563	0.097	0.295	0.129	4.591	0.394	3/8-24UNF	1.53
SER 212-37	5/16	4.3307	2.563	1.252	1	1.563	0.097	0.295	0.129	4.591	0.394	3/8-24UNF	1.53
SER 212-38	3/8	4.3307	2.563	1.252	1	1.563	0.097	0.295	0.129	4.591	0.394	3/8-24UNF	1.53
SER 212-39	7/16	4.3307	2.563	1.252	1	1.563	0.097	0.295	0.129	4.591	0.394	3/8-24UNF	1.53

Bearing NO.	Dimensions(mm/in.)											Weight(kg)
Bearing NO.	d	D	B1	B	C	r	S	B5	d5	A	ds	Weight(kg)
U000	10	26	17.5	11	8	0.5	4	8.5	17	3.5	M4X0.7	0.03
SS-U000	10	1.0236	0.689	0.433	0.315	0.5	0.157	0.335	0.669	0.138	M4X0.7	0.03
U001	12	28	17.5	11	8	0.5	4	8.5	19	3.5	M4X0.7	0.04
SS-U001	12	1.1024	0.689	0.433	0.315	0.5	0.157	0.335	0.748	0.138	M4X0.7	0.04
U002	15	32	18.5	12	9	0.5	4.5	8.5	22	3.5	M4X0.7	0.05
SS-U002	15	1.2598	0.728	0.472	0.354	0.5	0.177	0.335	0.866	0.138	M4X0.7	0.05
U003	17	35	20.5	13.5	10	0.5	5	9.5	25	3.5	M4X0.7	0.06
SS-U003	17	1.3779	0.807	0.531	0.394	0.5	0.197	0.374	0.984	0.138	M4X0.7	0.06
U004	20	42	24.5	16.5	12	1	6	11	30	5	M5X0.8	0.1
SS-U004	20	1.6535	0.964	0.65	0.472	1	0.236	0.433	1.181	0.197	M5X0.8	0.1
U005	25	47	25.5	17.5	12	1	6	12	36	5	M5X0.8	0.14
SS-U005	25	1.8504	1.004	0.689	0.472	1	0.236	0.472	1.417	0.197	M5X0.8	0.14
U006	30	55	26.5	18.5	13	1.5	6.5	12	42	5	M5X0.8	0.19
SS-U006	30	2.1653	1.043	0.728	0.512	1.5	0.256	0.472	1.653	0.197	M5X0.8	0.19
U007	35	62	29.5	20	14	1.5	7	13.5	48	5	M6X0.75	0.25
SS-U007	35	2.44	1.161	0.787	0.551	1.5	0.276	0.531	1.889	0.197	M6X0.75	0.25
