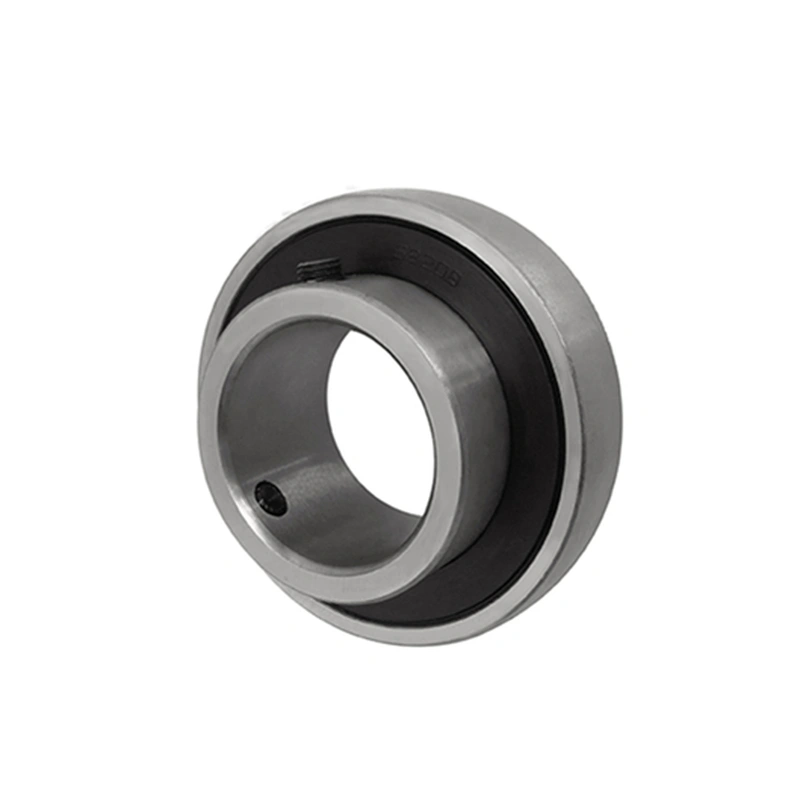

Insert Bearing SB JB

Description

Bearing NO.	Dimensions(mm/in.)									Weight(kg)
Bearing NO.	d	D	B	C	S	S1	ds	F	G	Weight(kg)
SB201	12	40	22	12	6	16	M5X0.8	3.4	4.5	0.1
SB 201-8	1/2	1.5748	0.8661	0.4724	0.236	0.63	10-32UNF	0.134	0.177	0.1
SB202	15	40	22	12	6	16	M5X0.8	3.4	4.5	0.1
SB 202-9	9/16	1.5748	0.8661	0.4724	0.236	0.63	10-32UNF	0.134	0.177	0.1
SB 202-10	5/8	1.5748	0.8661	0.4724	0.236	0.63	10-32UNF	0.134	0.177	0.1
SB203	17	40	22	12	6	16	M5X0.8	3.4	4.5	0.09
SB 203-11	11/16	1.5748	0.8661	0.4724	0.236	0.63	10-32UNF	0.134	0.177	0.09
SB204	20	47	25	14	7	18	M6X1	4.2	4.5	0.13
SB 204-12	3/4	1.8504	0.9843	0.5512	0.276	0.709	1/4-28UNF	0.165	0.177	0.14
SB205	25	52	27	15	7.5	19.5	M6X1	4.3	5.5	0.16
SB 205-13	13/16	2.0472	1.063	0.5906	0.295	0.768	1/4-28UNF	0.169	0.217	0.19
SB 205-14	7/8	2.0472	1.063	0.5906	0.295	0.768	1/4-28UNF	0.169	0.217	0.18
SB 205-15	15/16	2.0472	1.063	0.5906	0.295	0.768	1/4-28UNF	0.169	0.217	0.17
SB 205-16	1	2.0472	1.063	0.5906	0.295	0.768	1/4-28UNF	0.169	0.217	0.16
SB206	30	62	30	16	8	22	M6X1	5	6	0.25
SB 206-17	1/16	2.4409	1.1811	0.6299	0.315	0.866	1/4-28UNF	0.197	0.236	0.28
SB 206-18	1/8	2.4409	1.1811	0.6299	0.315	0.866	1/4-28UNF	0.197	0.236	0.26
SB 206-19	3/16	2.4409	1.1811	0.6299	0.315	0.866	1/4-28UNF	0.197	0.236	0.25
SB 206-20	1/4	2.4409	1.1811	0.6299	0.315	0.866	1/4-28UNF	0.197	0.236	0.24
SB207	35	72	32	17	8.5	23.5	M8X1	5.6	6.5	0.36
SB 207-20	1/4	2.8346	1.2598	0.6693	0.335	0.925	5/16-24UNF	0.22	0.256	0.41
SB 207-21	5/16	2.8346	1.2598	0.6693	0.335	0.925	5/16-24UNF	0.22	0.256	0.39
SB 207-22	3/8	2.8346	1.2598	0.6693	0.335	0.925	5/16-24UNF	0.22	0.256	0.36
SB 207-23	7/16	2.8346	1.2598	0.6693	0.335	0.925	5/16-24UNF	0.22	0.256	0.35
SB208	40	80	34	18	9	25	M8X1	5.9	7	0.45
SB 208-24	1/2	3.1496	1.3386	0.7087	0.354	0.984	5/16-24UNF	0.232	0.276	0.43
SB 208-25	9/16	3.1496	1.3386	0.7087	0.354	0.984	5/16-24UNF	0.232	0.276	0.45
SB209	45	85	41.2	19	10.2	31	M8X1	6.1	8.2	0.54
SB 209-26	5/8	3.3465	1.622	0.748	0.402	1.22	5/16-24UNF	0.24	0.323	0.54
SB 209-27	11/16	3.3465	1.622	0.748	0.402	1.22	5/16-24UNF	0.24	0.323	0.54
SB 209-28	3/4	3.3465	1.622	0.748	0.402	1.22	5/16-24UNF	0.24	0.323	0.54
SB210	50	90	43.5	20	10.9	32.6	M10X1	6.5	9.2	0.62
SB 210-29	1-13/16	3.5433	1.7126	0.7874	0.429	1.283	3/8-24UNF	0.256	0.362	0.62
SB 210-30	7/8	3.5433	1.7126	0.7874	0.429	1.283	3/8-24UNF	0.256	0.362	0.62
SB 210-31	1-15/16	3.5433	1.7126	0.7874	0.429	1.283	3/8-24UNF	0.256	0.362	0.62
SB 210-32	2	3.5433	1.7126	0.7874	0.429	1.283	3/8-24UNF	0.256	0.362	0.62
SB211	55	100	45.3	21	11.8	33.5	M10X1	7	9.8	0.81
SB 211-32	2	3.937	1.7835	0.8268	0.465	1.319	3/8-24UNF	0.276	0.386	0.81
SB 211-33	1/16	3.937	1.7835	0.8268	0.465	1.319	3/8-24UNF	0.276	0.386	0.81
SB 211-34	1/8	3.937	1.7835	0.8268	0.465	1.319	3/8-24UNF	0.276	0.386	0.81
SB 211-35	3/16	3.937	1.7835	0.8268	0.465	1.319	3/8-24UNF	0.276	0.386	0.81
SB212	60	110	53.7	22	14.9	38.8	M10X1	7.4	9.8	1.14
SB 212-36	1/4	4.3307	2.1142	0.8661	0.587	1.528	3/8-24UNF	0.291	0.386	1.14
SB 212-37	5/16	4.3307	2.1142	0.8661	0.587	1.528	3/8-24UNF	0.291	0.386	1.14
SB 212-38	3/8	4.3307	2.1142	0.8661	0.587	1.528	3/8-24UNF	0.291	0.386	1.14
SB 212-39	7/16	4.3307	2.1142	0.8661	0.587	1.528	3/8-24UNF	0.291	0.386	1.14

Bearing NO.	Dimensions(mm/in.)									Weight(kg)
Bearing NO.	d	D	B	C	S	S1	ds	F	G	Weight(kg)
JB201	12	40	22.5	13	6.5	16	M5X0.8	3.4	4.5	0.11
JB 201-8	1/2	1.5748	0.8858	0.5118	0.256	0.63	10-32UNF	0.134	0.177	0.11
JB202	15	40	22.5	13	6.5	16	M5X0.8	3.4	4.5	0.11
JB 202-9	9/16	1.5748	0.8858	0.5118	0.256	0.63	10-32UNF	0.006968504	0.177	0.11
JB 202-10	5/8	1.5748	0.8858	0.5118	0.256	0.63	10-32UNF	0.006968504	0.177	0.11
JB203	17	40	22.5	13	6.5	16	M5X0.8	3.4	4.5	0.1
JB 203-11	11/16	1.5748	0.8858	0.5118	0.256	0.63	10-32UNF	0.134	0.177	0.1
JB204	20	47	25.5	15	7.5	18	M6X1	4.2	4.5	0.14
JB 204-12	3/4	1.8504	1.0039	0.5906	0.295	0.709	1/4-28UNF	0.165	0.177	0.15
JB205	25	52	27	15	7.5	19.5	M6X1	4.3	5.5	0.16
JB 205-13	13/16	2.0472	1.063	0.5906	0.295	0.768	1/4-28UNF	0.169	0.217	0.19
JB 205-14	7/8	2.0472	1.063	0.5906	0.295	0.768	1/4-28UNF	0.169	0.217	0.18
JB 205-15	15/16	2.0472	1.063	0.5906	0.295	0.768	1/4-28UNF	0.169	0.217	0.17
JB 205-16	1	2.0472	1.063	0.5906	0.295	0.768	1/4-28UNF	0.169	0.217	0.16
JB206	30	62	30	18	9	21	M6X1	5	6	0.26
JB 206-17	1/16	2.4409	1.1811	0.7087	0.354	0.827	1/4-28UNF	0.197	0.236	0.29
JB 206-18	1/8	2.4409	1.1811	0.7087	0.354	0.827	1/4-28UNF	0.197	0.236	0.27
JB 206-19	3/16	2.4409	1.1811	0.7087	0.354	0.827	1/4-28UNF	0.197	0.236	0.26
JB 206-20	1/4	2.4409	1.1811	0.7087	0.354	0.827	1/4-28UNF	0.197	0.236	0.25
JB207	35	72	35	19	9.5	25.5	M8X1	5.6	6.5	0.37
JB 207-20	1/4	2.8346	1.378	0.748	0.374	1.004	5/16-24UNF	0	0.256	0.42
JB 207-21	5/16	2.8346	1.378	0.748	0.374	1.004	5/16-24UNF	0.22	0.256	0.4
JB 207-22	3/8	2.8346	1.378	0.748	0.374	1.004	5/16-24UNF	0.22	0.256	0.37
JB 207-23	7/16	2.8346	1.378	0.748	0.374	1.004	5/16-24UNF	0.22	0.256	0.36
JB208	40	80	40	22	11	29	M8X1	5.9	7	0.47
JB 208-24	1/2	3.1496	1.5748	0.8661	0.433	1.142	5/16-24UNF	0.232	0.276	0.45
JB 208-25	9/16	3.1496	1.5748	0.8661	0.433	1.142	5/16-24UNF	0.232	0.276	0.47
JB209	45	85	41.5	22	11	30.5	M8X1	6.1	8.2	0.55
JB 209-26	5/8	3.3465	1.6339	0.8661	0.433	1.201	5/16-24UNF	0.24	0.323	0.55
JB 209-27	11/16	3.3465	1.6339	0.8661	0.433	1.201	5/16-24UNF	0.24	0.323	0.55
JB 209-28	3/4	3.3465	1.6339	0.8661	0.433	1.201	5/16-24UNF	0.24	0.323	0.55
JB210	50	90	43	22	11	32	M10X1	6.5	9.2	0.64
JB 210-29	1-13/16	3.5433	1.6929	0.8661	0.433	1.26	3/8-24UNF	0.256	0.362	0.64
JB 210-30	7/8	3.5433	1.6929	0.8661	0.433	1.26	3/8-24UNF	0.256	0.362	0.64
JB 210-31	1-15/16	3.5433	1.6929	0.8661	0.433	1.26	3/8-24UNF	0.256	0.362	0.64
JB 210-32	2	3.5433	1.6929	0.8661	0.433	1.26	3/8-24UNF	0.256	0.362	0.64

Insert Bearing SB JB

Description

send inquiry to us
