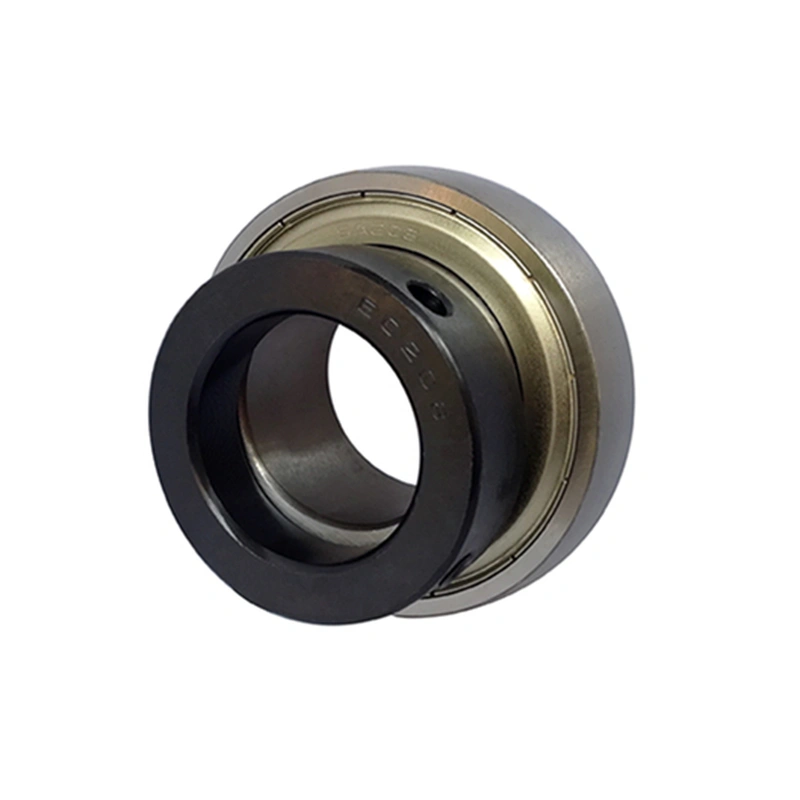

Insert Bearing SA JA

Description

Bearing NO.	Dimensions(mm/in.)											Weight(kg)
Bearing NO.	d	D	B	B1	C	S	ds	G	F	B5	d3	Weight(kg)
SA201	12	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	0.12
SA 201-8	1/2	1.5748	1.126	0.752	0.4724	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	0.12
SA202	15	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	0.1
SA 202-9	9/16	1.5748	1.126	0.752	0.4724	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	0.1
SA 202-10	5/8	1.5748	1.126	0.752	0.4724	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	0.1
SA203	17	40	28.6	19.1	12	6.5	M6X1	4.8	3.4	13.5	28.6	0.09
SA 203-11	11/16	1.5748	1.126	0.752	0.4724	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	0.09
SA204	20	47	31	21.5	14	7.5	M6X1	4.8	4.2	13.5	33.3	0.16
SA 204-12	3/4	1.8504	1.22	0.8465	0.5512	0.295	1/4-28UNF	0.189	0.165	0.531	1.311	0.16
SA205	25	52	31	21.5	15	7.5	M6X1	4.8	4.3	13.5	38.1	0.2
SA 205-13	13/16	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	0.22
SA 205-14	7/8	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	0.21
SA 205-15	15/16	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	0.21
SA 205-16	1	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	0.2
SA206	30	62	35.7	23.8	16	9	M8X1	6	5	15.9	44.5	0.3
SA 206-17	1/16	2.4409	1.406	0.937	0.6299	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	0.32
SA 206-18	1/8	2.4409	1.406	0.937	0.6299	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	0.31
SA 206-19	3/16	2.4409	1.406	0.937	0.6299	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	0.3
SA 206-20	1/4	2.4409	1.406	0.937	0.6299	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	0.29
SA207	35	72	38.9	25.4	17	9.5	M8X1	6.8	5.6	17.5	55.6	0.42
SA 207-20	1/4	2.8346	1.531	1	0.6693	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	0.46
SA 207-21	5/16	2.8346	1.531	1	0.6693	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	0.43
SA 207-22	3/8	2.8346	1.531	1	0.6693	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	0.42
SA 207-23	7/16	2.8346	1.531	1	0.6693	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	0.41
SA208	40	80	43.7	30.2	18	11	M8X1	6.8	5.9	18.3	60.3	0.6
SA 208-24	1/2	3.1496	1.721	1.189	0.7087	0.433	5/16-24UNF	0.268	0.232	0.72	2.374	0.58
SA 208-25	9/16	3.1496	1.721	1.189	0.7087	0.433	5/16-24UNF	0.268	0.232	0.72	2.374	0.6
SA209	45	85	43.7	30.2	19	11	M8X1	6.8	6.1	18.3	63.5	0.64
SA 209-26	5/8	3.3465	1.721	1.189	0.748	0.433	5/16-24UNF	0.268	0.24	0.72	2.5	0.64
SA 209-27	11/16	3.3465	1.721	1.189	0.748	0.433	5/16-24UNF	0.268	0.24	0.72	2.5	0.64
SA 209-28	3/4	3.3465	1.721	1.189	0.748	0.433	5/16-24UNF	0.268	0.24	0.72	2.5	0.64
SA210	50	90	43.7	30.2	20	11	M8X1	6.8	6.5	18.3	69.9	0.72
SA 210-29	1-13/16	3.5433	1.721	1.189	0.7874	0.433	5/16-24UNF	0.268	0.265	0.72	2.752	0.72
SA 210-30	7/8	3.5433	1.721	1.189	0.7874	0.433	5/16-24UNF	0.268	0.265	0.72	2.752	0.72
SA 210-31	1-15/16	3.5433	1.721	1.189	0.7874	0.433	5/16-24UNF	0.268	0.265	0.72	2.752	0.72
SA 210-32		3.5433	1.721	1.189	0.7874	0.433	5/16-24UNF	0.268	0.265	0.72	2.752	0.72
SA211	55	100	48.4	32.5	21	12	M10X1	8	7	20.7	76.2	1
SA 211-32	2	3.937	1.906	1.2795	0.8268	0.472	3/8-24UNF	0.315	0.276	0.815	3	1
SA 211-33	1/16	3.937	1.906	1.2795	0.8268	0.472	3/8-24UNF	0.315	0.276	0.815	3	1
SA 211-34	1/8	3.937	1.906	1.2795	0.8268	0.472	3/8-24UNF	0.315	0.276	0.815	3	1
SA 211-35	3/16	3.937	1.906	1.2795	0.8268	0.472	3/8-24UNF	0.315	0.276	0.815	3	1
SA212	60	110	53.1	37.2	22	13.5	M10X1	8	7.4	22.3	84.2	1.34
SA 212-36	1/4	4.3307	2.091	1.4646	0.8661	0.532	3/8-24UNF	0.315	0.291	0.878	3.315	1.34
SA 212-37	5/16	4.3307	2.091	1.4646	0.8661	0.532	3/8-24UNF	0.315	0.291	0.878	3.315	1.34
SA 212-38	3/8	4.3307	2.091	1.4646	0.8661	0.532	3/8-24UNF	0.315	0.291	0.878	3.315	1.34
SA 212-39	7/16	4.3307	2.091	1.4646	0.8661	0.532	3/8-24UNF	0.315	0.291	0.878	3.315	1.34

Bearing NO.	Dimensions(mm/in.)											Weight(kg)
Bearing NO.	d	D	B1	B	C	S	ds	G	F	B5	d3	Weight(kg)
JA201	12	40	28.6	19.1	13	6.5	M6X1	4.8	3.4	13.5	28.6	0.13
JA 201-8	1/2	1.5748	1.126	0.752	0.5118	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	0.13
JA202	15	40	28.6	19.1	13	6.5	M6X1	4.8	3.4	13.5	28.6	0.11
JA 202-9	9/16	1.5748	1.126	0.752	0.5118	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	0.11
JA 202-10	5/8	2.5748	2.126	1.752	1.5118	1.256	1/4-29UNF	1.189	0.134	1.531	2.126	0.11
JA203	17	40	28.6	19.1	13	6.5	M6X1	4.8	3.4	13.5	28.6	0.1
JA 203-11	11/16	1.5748	1.126	0.752	0.5118	0.256	1/4-28UNF	0.189	0.134	0.531	1.126	0.1
JA204	20	47	31	21.5	15	7.5	M6X1	4.8	4.2	13.5	33.3	0.16
JA 204-12	3/4	1.8504	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.165	0.531	1.311	0.16
JA205	25	52	31	21.5	15	7.5	M6X1	4.8	4.3	13.5	38.1	0.2
JA 205-13	13/16	2.0472	1.22	0.8465	0.5906	0.295	1/4-28UNF	0.189	0.169	0.531	1.5	0.22
JA 205-14	7/8	3.0472	2.22	1.8465	1.5906	1.295	1/4-29UNF	1.189	0.060275591	1.531	2.5	0.21
JA 205-15	15/16	4.0472	3.22	2.8465	2.5906	2.295	1/4-30UNF	2.189	0.169	2.531	3.5	0.21
JA 205-16	1	5.0472	4.22	3.8465	3.5906	3.295	1/4-31UNF	3.189	0.169	3.531	4.5	0.2
JA206	30	62	35.7	23.8	18	9	M8X1	6	5	15.9	44.5	0.31
JA 206-17	1/16	2.4409	1.406	0.937	0.7087	0.354	5/16-24UNF	0.236	0.197	0.626	1.752	0.33
JA 206-18	1/8	2.4409	1.406	0.937	0.7087	0.354	5/16-25UNF	0.236	0.197	0.626	1.752	0.32
JA 206-19	3/16	2.4409	1.406	0.937	0.7087	0.354	5/16-26UNF	0.236	0.197	0.626	1.752	0.31
JA 206-20	1/4	2.4409	1.406	0.937	0.7087	0.354	5/16-27UNF	0.236	0.197	0.626	1.752	0.3
JA207	35	72	38.9	25.4	19	9.5	M8X1	6.8	5.6	17.5	55.6	0.43
JA 207-20	1/4	2.8346	1.531	1	0.748	0.374	5/16-24UNF	0.268	0.22	0.689	2.189	0.47
JA 207-21	5/16	3.8346	2.531	2	1.748	1.374	5/16-25UNF	1.268	0.22	1.689	3.189	0.44
JA 207-22	3/8	4.8346	3.531	3	2.748	2.374	5/16-26UNF	2.268	0.22	2.689	4.189	0.43
JA 207-23	7/16	2.8346	1.531	1	0.748	0.374	5/16-27UNF	3.268	0.22	3.689	5.189	0.42
JA208	40	80	43.7	30.2	22	11	M8X1	6.8	5.9	18.3	60.3	0.62
JA 208-24	1/2	3.1496	1.721	1.189	0.8661	0.433	5/16-24UNF	0.268	0.232	0.72	2.374	0.6
JA 208-25	9/16	3.1496	1.721	1.189	0.8661	0.433	5/16-25UNF	0.268	0.232	0.72	2.374	0.62
JA209	45	85	43.7	30.2	22	11	M8X1	6.8	6.1	18.3	63.5	0.66
JA 209-26	5/8	3.3465	1.721	1.189	0.8661	0.433	5/16-24UNF	0.268	0.24	0.72	2.5	0.66
JA 209-27	11/16	3.3465	1.721	1.189	0.8661	0.433	5/16-25UNF	0.268	0.24	0.72	2.5	0.66
JA 209-28	3/4	5.3465	3.721	3.189	2.8661	2.433	5/16-26UNF	2.268	#REF!	2.72	4.5	0.66
JA210	50	90	43.7	30.2	22	11	M8X1	6.8	6.5	18.3	69.9	0.75
JA 210-29	1-13/16	3.5433	1.721	1.189	0.8661	0.433	5/16-24UNF	0.268	0	0.72	2.752	0.75
JA 210-30	7/8	3.5433	1.721	1.189	0.8661	0.433	5/16-25UNF	0.268	0.256	0.72	2.752	0.75
JA 210-31	1-15/16	3.5433	1.721	1.189	0.8661	0.433	5/16-26UNF	0.268	0.256	0.72	2.752	0.75
JA 210-32	2	3.5433	1.721	1.189	0.8661	0.433	5/16-27UNF	0.268	0.256	0.72	2.752	0.75
JA211	55	100	48.4	32.5	24	12	M10X1	8	7	20.7	76.2	1.03
JA 211-32	2	3.937	1.906	1.2795	0.9449	0.472	3/8-24UNF	0.315	0.276	0.815	3	1.03
JA 211-33	1/16	3.937	1.906	1.2795	0.9449	0.472	3/8-25UNF	0.315	0.276	0.815	3	1.03
JA 211-34	1/8	3.937	1.906	1.2795	0.9449	0.472	3/8-26UNF	0.315	0.276	0.815	3	1.03
JA 211-35	3/16	3.937	1.906	1.2795	0.9449	0.472	3/8-27UNF	0.315	0.276	0.815	6	1.03
JA212	60	110	53.1	37.2	27	13.5	M10X1	8	7.4	22.3	84.2	1.37
JA 212-36	1/4	4.3307	2.091	1.4646	1.063	0.532	3/8-24UNF	0.315	0.291	0.878	3.315	1.37
JA 212-37	5/16	4.3307	2.091	1.4646	1.063	0.532	3/8-24UNF	0.315	0.291	0.878	3.315	1.37
JA 212-38	3/8	4.3307	2.091	1.4646	1.063	0.532	3/8-24UNF	0.315	0.291	0.878	3.315	1.37
JA 212-39	7/16	4.3307	2.091	1.4646	1.063	0.532	3/8-24UNF	0.315	0.291	0.878	3.315	1.37
