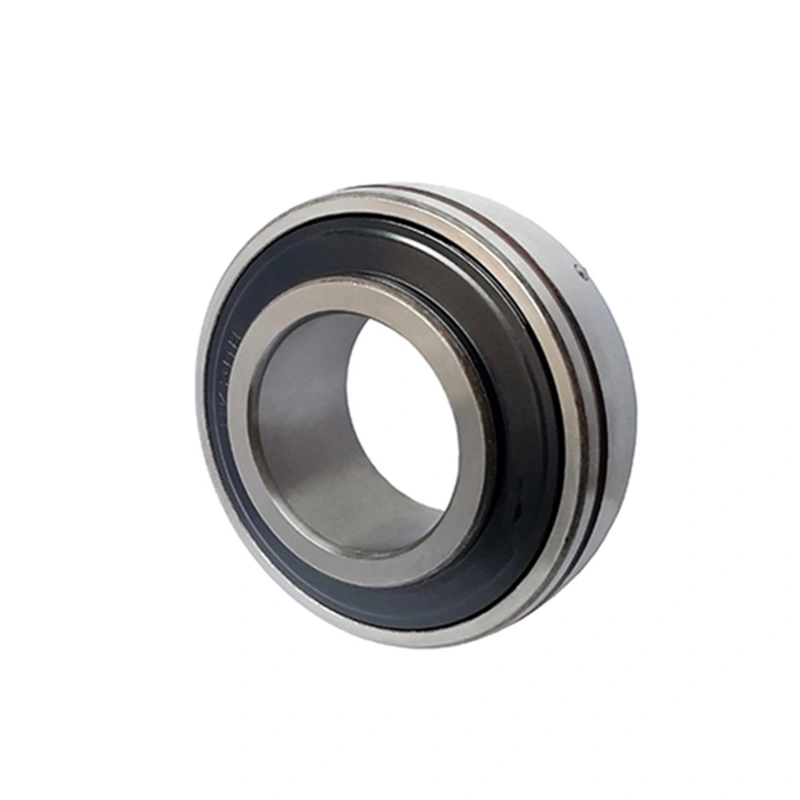

Insert Bearing HC200 HC300

Description

Bearing NO.	Dimensions(mm/in.)									Weight(kg)
Bearing NO.	d1	d	D	B	C	B1	B2	ds	F	Weight(kg)
UK205;H2305	20	25	52	23	17	35	8	38	3.9	0.24
UK 205;HE2305	3/4	0.9843	2.0472	0.9055	0.6693	1.378	0.315	1.496	0.154	0.24
UK206;H2306	25	30	62	26	19	38	8	45	5	0.36
UK 206;HS2306	1	1.1811	2.4409	1.0236	0.748	1.496	0.315	1.772	0.197	0.36
UK 206;HE2306		1.1811	2.4409	1.0236	0.748	1.496	0.315	1.772	0.197	0.36
UK207;H2307	30	35	72	29	20	43	9	52	5.7	0.52
UK 207;HS2307	1/8	1.378	2.8346	1.1417	0.7874	1.693	0.354	2.047	0.224	0.52
UK208;H2308	35	40	80	31	21	46	10	58	6.2	0.67
UK 208;HE2308	1/4	1.5748	3.1496	1.2205	0.8268	1.811	0.394	2.283	0.244	0.67
UK 208;HS2308	3/8	1.5748	3.1496	1.2205	0.8268	1.811	0.394	2.283	0.244	0.67
UK209;H2309	40	45	85	31	22	50	11	65	6.4	0.77
UK 209;HA2309	7/16	1.7717	3.3465	1.2205	0.8661	1.969	0.433	2.559	0.252	0.77
UK 209;HE2309	1/2	1.7717	3.3465	1.2205	0.8661	1.969	0.433	2.559	0.252	0.77
UK 209;HS2309	5/8	1.7717	3.3465	1.2205	0.8661	1.969	0.433	2.559	0.252	0.77
UK210;H2310	45	50	90	32	24	55	12	70	6.5	0.92
UK 210;HS2310	5/8	1.9685	3.5433	1.2598	0.9449	2.165	0.472	2.756	0.256	0.92
UK 210;HA2310	11/16	1.9685	3.5433	1.2598	0.9449	2.165	0.472	2.756	0.256	0.92
UK 210;HE2310	3/4	1.9685	3.5433	1.2598	0.9449	2.165	0.472	2.756	0.256	0.92
UK211;H2311	50	55	100	35	25	59	12	75	7	1.15
UK 211;HS2311	7/8	2.1654	3.937	1.378	0.9843	2.323	0.472	2.953	0.276	1.15
UK 211;HA2311	1-15/16	2.1654	3.937	1.378	0.9843	2.323	0.472	2.953	0.276	1.15
UK 211;HE2311	2	2.1654	3.937	1.378	0.9843	2.323	0.472	2.953	0.276	1.15
UK212;H2312	55	60	110	38	27	62	13	80	7.6	1.47
UK 212;HS2312	1/8	2.3622	4.3307	1.4961	1.063	2.441	0.512	3.15	0.299	1.47
UK213;H2313	60	65	120	40	28	65	14	85	8.5	1.81
UK 213;HA2313	3/16	2.5591	4.7244	1.5748	1.1024	2.559	0.551	3.346	0.335	1.81
UK 213;HE2313	1/4	2.5591	4.7244	1.5748	1.1024	2.559	0.551	3.346	0.335	1.81
UK 213;HS2313	3/8	2.5591	4.7244	1.5748	1.1024	2.559	0.551	3.346	0.335	1.81
UK215;H2315	65	75	130	44	30	73	15	98	9.2	2.55
UK 215;HA2315	7/16	2.9528	5.1181	1.7323	1.1811	2.874	0.591	3.858	0.362	2.55
UK 215;HE2315	1/2	2.9528	5.1181	1.7323	1.1811	2.874	0.591	3.858	0.362	2.55
UK216;H2316	70	80	140	45	32	78	17	105	9.5	3.08
UK 216;HA2316	11/16	3.1496	5.5118	1.7717	1.2598	3.071	0.669	4.134	0.374	3.08
UK 216;HE2316	3/4	3.1496	5.5118	1.7717	1.2598	3.071	0.669	4.134	0.374	3.08
UK217;H2317	75	85	150	46	34	82	18	110	10.2	3.7
UK 217;HA2317	2-15/16	3.3465	5.9055	1.811	1.3386	3.228	0.709	4.331	0.402	3.7
UK 217;HE2317	3	3.3465	5.9055	1.811	1.3386	3.228	0.709	4.331	0.402	3.7
UK218;H2318	80	90	160	47	36	86	18	120	11.2	4.34
UK 218;HA2318	3/16	3.5433	6.2992	1.8504	1.4173	3.386	0.709	4.724	0.441	4.34

Bearing NO.	Dimensions(mm/in.)									Weight(kg)
Bearing NO.	d1	d	D	B	C	B1	B2	d2	F	Weight(kg)
UK305;H2305	20	25	62	26	20	35	8	38	5.4	0.36
UK 305;HE2305	3/4	0.9843	2.4409	1.0236	0.7874	1.378	0.315	1.496	0.213	0.36
UK306;H2306	25	30	72	29	23	38	8	45	5.7	0.56
UK 306;HS2306	7/8	1.1811	2.8346	1.1417	0.9055	1.496	0.315	1.772	0.244	0.56
UK 306;HE2306	1	1.1811	2.8346	1.1417	0.9055	1.496	0.315	1.772	0.244	0.56
UK307;H2307	30	35	80	33	25	43	9	52	6.2	0.72
UK 307;HS2307	1/8	1.378	3.1496	1.2992	0.9843	1.693	0.354	2.047	0.244	0.72
UK308;H2308	35	40	90	34	27	46	10	58	7	0.99
UK 308;HE2308	1/4	1.5748	3.5433	1.3386	1.063	1.811	0.394	2.283	0.276	0.99
UK 308;HS2308	3/8	1.5748	3.5433	1.3386	1.063	1.811	0.394	2.283	0.276	0.99
UK309;H2309	40	45	100	37	30	50	11	65	7.8	1.29
UK 309;HA2309	7/16	1.7717	3.937	1.4567	1.1611	1.969	0.433	2.559	0.307	1.29
UK 309;HE2309	1月12日	1.7717	3.937	1.4567	1.1611	1.969	0.433	2.559	0.307	1.29
UK 309;HS2309	5/8	1.7717	3.937	1.4567	1.1611	1.969	0.433	2.559	0.307	1.29
UK310;H2310	45	50	110	41	32	55	12	70	8.5	1.71
UK 310;HS2310	5/8	1.9685	4.3307	1.6142	1.2598	2.165	0.472	2.756	0.335	1.71
UK 310;HA2310	11/16	1.9685	4.3307	1.6142	1.2598	2.165	0.472	2.756	0.335	1.71
UK 310;HE2310	3/4	1.9685	4.3307	1.6142	1.2598	2.165	0.472	2.756	0.335	1.71
UK311;H2311	50	55	120	44	34	59	12	75	9.2	2.08
UK 311;HS2311	7/8	2.1654	4.7244	1.7323	1.3386	2.323	0.472	2.953	0.362	2.08
UK 311;HA2311	1-15/16	2.1654	4.7244	1.7323	1.3386	2.323	0.472	2.953	0.362	2.08
UK 311;HE2311	2	2.1654	4.7244	1.7323	1.3386	2.323	0.472	2.953	0.362	2.08
UK312;H2312	55	60	130	47	36	62	13	80	9.8	2.88
UK 312;HS2312	1/8	2.3622	5.1181	1.8504	1.4173	2.441	0.512	3.15	0.386	2.88
UK313;H2313	60	65	140	49	38	65	14	85	10.5	3.1
UK 313;HA2313	3/16	2.5591	5.5118	1.9291	1.4961	2.559	0.551	3.346	0.413	3.1
UK 313;HE2313	1/4	2.5591	5.5118	1.9291	1.4961	2.559	0.551	3.346	0.413	3.1
UK 313;HS2313	3/8	2.5591	5.5118	1.9291	1.4961	2.559	0.551	3.346	0.413	3.1
UK315;H2315	65	75	160	55	42	73	15	98	11.8	4.76
UK 315;HA2315	7/16	2.9528	6.2992	2.1654	1.6535	2.874	0.591	3.858	0.465	4.76
UK 315;HE2315	1/2	2.9528	6.2992	2.1654	1.6535	2.874	0.591	3.858	0.465	4.76
UK316;H2316	70	80	170	55	44	78	17	105	12.5	5.51
UK 316;HA2316	11/16	3.1496	6.6929	2.1654	1.7323	3.071	0.669	4.134	0.492	5.51
UK 316;HE2316	3/4	3.1496	6.6929	2.1654	1.7323	3.071	0.669	4.134	0.492	5.51
UK317;H2317	75	85	180	60	46	82	18	110	13.1	6.75
UK 317;HA2317	2-15/16	3.3465	7.0866	2.3622	1.811	3.228	0.709	4.331	0.516	6.75
UK 317;HE2317	3	3.3465	7.0866	2.3622	1.811	3.228	0.709	4.331	0.516	6.75
UK318;H2318	80	90	190	63	48	86	18	120	13.8	7.62
UK 318;HA2318	3/16	3.5433	7.4803	2.48	1.8898	3.386	0.709	4.724	0.441	7.62
UK319;H2319	85	95	200	66	50	90	19	125	14.7	9.23
UK 319;HA2319	5/16	3.7402	7.874	2.5984	1.9685	3.543	0.748	4.9213	0.579	9.23
UK320;H2320	90	100	215	68	54	97	20	130	15.7	10.85
UK 320;HA2320	7/16	3.937	8.4646	2.6771	2.126	3.814	0.787	5.1181	0.618	10.85
UK322;H2322	100	110	240	78	60	105	21	145	17.7	14.94
UK 322;HA2322	3-15/16	4.3307	9.4488	3.0709	2.3622	4.134	0.827	5.709	0.697	14.94
UK324;H2324	110	120	260	87	64	112	22	155	19	19.29
UK 324;HA2324	3/16	4.7244	10.2362	3.4252	2.5197	4.41	0.866	6.102	0.748	19.29
UK326;H2326	115	130	280	87	68	121	23	165	20	23.4
UK 326;HA2326	7/16	5.1181	11.0236	3.4252	2.6771	4.764	0.908	6.496	0.787	23.4
UK328;H2328	125	140	300	97	72	131	24	180	22	29.45
UK 328;HA2328	4-15/16	5.5118	11.811	3.8189	2.8189	5.158	0.945	7.087	0.866	29.45

Bearing NO.	Dimensions(mm/in.)									Weight(kg)
Bearing NO.	d1	d	D	B	C	B1	B2	d2	F	Weight(kg)
UKX05;H2305	20	25	62	26	19	35	8	38	5	0.37
UK X05;HE2305	3/4	0.9845	2.4409	1.0236	0.748	1.378	0.315	1.496	0.197	0.37
UKX06;H2306	25	30	72	29	20	38	8	45	5.7	0.59
UK X06;HS2306	7/8	1.1811	2.8346	1.1417	0.7874	1.496	0.315	1.771	0.224	0.59
UK X06;HE2306	1	1.1811	2.8346	1.1417	0.7874	1.496	0.315	1.771	0.224	0.59
UKX07;H2307	30	35	80	31	21	43	9	52	6.2	0.75
UK X07;HS2307	1/8	1.378	3.1496	1.2205	0.8268	1.693	0.354	2.047	0.244	0.75
UKX08;H2308	35	40	85	31	22	46	10	58	6.4	0.86
UK X08;HE2308	1/4	1.5748	3.3465	1.2205	8.661	1.811	0.394	2.284	0.252	0.86
UK X08;HS2308	3/8	1.5748	3.3465	1.2205	8.661	1.811	0.394	2.284	0.252	0.86
UKX09;H2309	40	45	90	32	24	50	11	65	6.5	0.96
UK X09;HA2309	7/16	1.7717	3.5433	1.2598	0.9449	1.969	0.433	2.559	0.256	0.96
UK X09;HE2309	1/12	1.7717	3.5433	1.2598	0.9449	1.969	0.433	2.559	0.256	0.96
UK X09;HS2309	5/8	1.7717	3.5433	1.2598	0.9449	1.969	0.433	2.559	0.256	0.96
UKX10;H2310	45	50	100	35	25	55	12	70	7	1.34
UK X10;HS2310	5/8	1.9685	3.937	1.378	0.6843	2.165	0.472	2.756	0.726	1.34
UK X10;HA2310	11/16	1.9685	3.937	1.378	0.6843	2.165	0.472	2.756	0.726	1.34
UK X10;HE2310	3/4	1.9685	3.937	1.378	0.6843	2.165	0.472	2.756	0.726	1.34
UKX11;H2311	50	55	110	38	27	59	12	75	7.6	1.67
UK X11;HS2311	7/8	2.1654	4.3307	1.496	1.063	2.323	0.472	2.953	0.299	1.67
UK X11;HA2311	1-15/16	2.1654	4.3307	1.496	1.063	2.323	0.472	2.953	0.299	1.67
UK X11;HE2311	2	2.1654	4.3307	1.496	1.063	2.323	0.472	2.953	0.299	1.67
UKX12;H2312	55	60	120	40	28	62	13	80	8.5	1.84
UK X12;HS2312	1/8	2.3622	4.7244	1.5748	1.1024	2.441	0.512	3.15	0.335	1.84
UKX13;H2313	60	65	125	40	29	65	14	85	8.9	2.15
UK X13;HA2313	3/16	2.5591	4.9213	1.5748	1.1417	2.559	0.551	3.346	0.35	2.15
UK X13;HE2313	1/4	2.5591	4.9213	1.5748	1.1417	2.559	0.551	3.346	0.35	2.15
UK X13;HS2313	3/8	2.5591	4.9213	1.5748	1.1417	2.559	0.551	3.346	0.35	2.15
UKX15;H2315	65	75	140	45	32	73	15	98	9.5	3.05
UK X15;HA2315	7/16	2.9528	5.5118	1.7717	1.2598	2.874	0.591	3.858	0.374	3.05
UK X15;HS2315	1/2	2.9528	5.5118	1.7717	1.2598	2.874	0.591	3.858	0.374	3.05
UKX16;H2316	70	80	150	46	34	78	17	105	10.2	3.95
UK X16;HA2316	11/16	3.1496	5.9055	1.811	1.3386	3.071	0.669	4.134	0.402	3.95
UK X16;HS2316	3/4	3.1496	5.9055	1.811	1.3386	3.071	0.669	4.134	0.402	3.95
UKX17;H2317	75	85	160	47	36	82	18	110	11.2	4.83
UK X17;HA2317	2-15/16	3.3465	6.2992	1.8504	1.4173	3.228	0.709	4.331	0.441	4.83
UK X17;HE2317	3	3.3465	6.2992	1.8504	1.4173	3.228	0.709	4.331	0.441	4.83
UKX18;H2318	80	90	170	50	39	86	18	120	12.5	5.45
UK X18;HA2318	3/16	3.5433	6.6929	1.9685	1.5354	3.386	0.709	4.724	0.492	5.45
UKX20;H23X0	90	100	190	54	43	97	20	130	13.7	7.51
UK X20;HA23X0	3-17/32	3.937	7.4803	2.126	1.6929	3.8189	0.7874	5.1181	0.539	7.51
